Installation tips

---

Before the installation, make sure that the TCP/IP protocol is installed in your Network Settings. Client computers should be able to access the server computer. If you plan to organize communications via a WAN/Internet connection, make sure that the server IP address is shared and reachable from outside locations.

Since Bopup Communication Server logs and archives all message, file transfer history and user conversations, it needs a database server to store all the data. The server installation file comes in 2 setup packages: the first package requires an installed MS SQL server (on a local or remote computer) and the second package includes the MSDE 2000 engine that can be installed together with Bopup Communication Server.

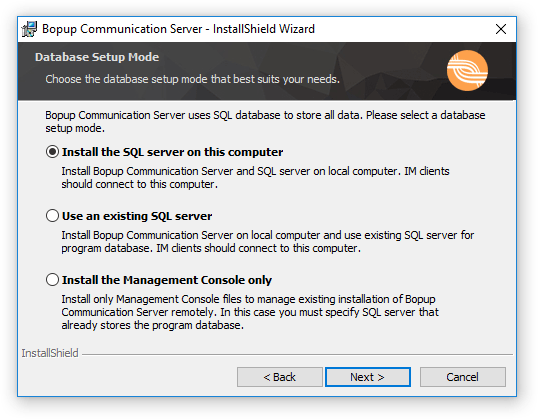

Selecting how to install/use the SQL server (the full setup package)

You can choose from 3 available installation modes:

• Install the SQL server on this computer — This is the Local Installation Mode and the most preferred way to install the IM server. Use it to install MSDE 2000 that comes with the setup package as an internal SQL server on the local computer.



• Use an existing SQL server — This is the Remote Installation Mode and you should specify an existing MS SQL server running somewhere on a local or remote computer. Use this option if you already have an SQL server on your computer or on the local area network (LAN) of your company.



• Install the Management Console only — This is the Administration Installation Mode that installs only the Management Console to manage an existing database of Bopup Communication Server. Choose this mode if you want to manage Bopup Communication Server running somewhere on your network from the local computer (Remote Administrator Console).

The Setup Wizard creates an SQL database on the specified SQL server, installs and runs the Bopup Communication Server service. The IM server is managed via the Management Console (GUI). You can start it either using its desktop shortcut or from the "Start Menu -> Programs -> Bopup Communication Server" folder.
